Product Description
Best Quality 60" Finish Cut Mowers AcrEase Model H60B | Single Cylinder Electric Start Engine | Pull Type | For ATV / UTV / Small Tractor
DESCRIPTION

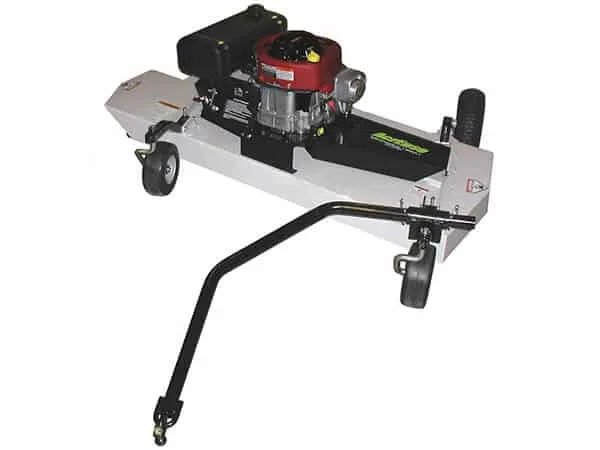

The H60B Homeowner Finish Cut Mower is a reliable and versatile tool designed for residential mowing needs. Equipped with a 19 HP Briggs & Stratton Professional single-cylinder engine, this mower offers excellent performance for larger yards or fields. The 60″ cutting width and deep deck design ensure precise cutting and enhanced capacity for handling a variety of grass types.
This mower features a centrifugal clutch blade engagement, making it easy to operate by simply increasing the engine RPM. The cutting height can be adjusted from 1″ to 4″ with the 4-point height adjustment system, providing the flexibility to handle different mowing conditions. Built with an 11 GA steel deck and reinforced with an additional top plate, the H60B is durable enough for long-term use.
With six anti-scalp wheels, the H60B ensures smooth operation and prevents turf damage. It can be attached to a variety of tow vehicles, including riding mowers, zero-turn mowers, ATVs, and UTVs, making it a versatile addition to any homeowner's equipment collection.
Key Features
- Durable Engine: 19 HP Briggs & Stratton Professional non-commercial grade engine with pressure lubrication and a pre-cleaner air filter.
- Centrifugal Clutch Engagement: Blade engagement is activated by increasing engine RPM for simple and reliable operation.
- Adjustable Cutting Height: Infinite height adjustment from 1″ to 4″ using the 4-point system for tailored mowing needs.
- Heavy-Duty Deck Construction: Built with 11 GA steel deck and reinforced top plate for strength and durability.
- Deep Deck Design: Wide side discharge and inline blades provide increased cutting and mulching capacity.
- Anti-Scalp Protection: Six anti-scalp wheels with front/rear safety zones ensure smooth operation and protect your lawn.
19HP Briggs & Stratton Professional non-commercial grade single cylinder engine
The blade spindles used on the AcrEase mowers are built out of heavy-duty welded steel hubs, 25mm (1") steel shafts and large sealed ball bearings.
The cutting height can accurately be adjusted from 1"-4" with the 4-point height adjust system.
The main deck is built out of 11 GA (.120") thick steel with an 11 GA (.120") thick steel top plate for reinforcement.
Deep deck design with wide side discharge and inline blades for added capacity
Six anti-scalp wheels and safety zones are located in the front and rear of the mower.
The centrifugal clutch is engaged by simply increasing the engine rpm.
Large 3-1/4 gallon fuel tank that provides 3 to 3-1/2 hours of run time.
ACCESSORIES
Floatation Kit:
An extra front and back tire can be bolted in the center section of the mower deck. This is handy in the following applications:
- Rough uneven ground where added floatation is needed.
- Hard to reach areas at the waters edge around ponds.
- Extending over a creek banks edge.
- Steep road banks where added traction is needed.
- Gradual crowned or peaked areas in a yard.
Lawn & Garden Hitching:
Use on riding mowers and zero turn radius mowers.
- The Lawn and Garden Hitching bolts directly to the existing hitch on any riding lawn mower or zero turning radius mower.
- Allows for close hitching of the AcrEase and telescopes in or out to adjust for the tow vehicles deck width.
- Provides a maneuverable quick response system with maximum stability at high mowing speeds and on steep banks.
- When pulling one wing mower use the tow vehicle hitch (telescope hitch) and short tongue.
- When pulling multiple wing mowers it is necessary to purchase additional hitching.
- The long tongue extension is used when two AcrEase are pulled (one on the left and one on the right). By extending the left side AcrEase back, grass will not be blown onto the right side AcrEase.
- The rear hitch is used for hitching two AcrEase in tandem (both off to the left side).
ATV Tongue:
Use on ATVs, utility vehicles, and all other tow vehicles without mowing decks.
- The ATV tongue hitches directly to the tow vehicles’ existing hitch with a provided clevis pin.
- Quick and easy initial installation.
- The ATV tongue can be quickly interchanged from the offset position to direct behind towing.
- Quick response maneuverability and stability at high mowing speeds and on steep banks may be reduced slightly.
- Multiple mowers can be pulled with an ATV or UTV by using a combination of Lawn & Garden and ATV Tongue hitching.
Detailed Specifications
| MODEL | H60B |
| Class Mower | Homeowner |
| Engine Make | OHV Briggs & Stratton |
| Engine Model | Intek Professional |
| Engine HP | 19 |
| Lubrication Method | Pressure With Filter |
| Air Filter Type | Std. Air Filter with Pre-Cleaner |
| Electric Start (Battery not included) | Yes |
| Number of Mower Blades | 3-20″ |
| Blade Tip Speed (ft/mm) | 17,500 |
| Cutting Width | 58″ |
| Cutting Height (infinite adjust each wheel) | 1.0 – 4.0″ |
| Blade Engagement Clutch | Centrifugal |
| Clutch Engagement Speed | 1850 RPM |
| Deck Metal Thickness | 11 GA |
| Deck Top Plate Thickness (Additional Layer) | 11 GA |
| Weight | 325 lbs |
| Pneumatic Fixed Rear Tires | 13/500×6, 2 Ply Turf |
| Front Tires on Casters | 9/350×4, Slick (Flat Proof Urethane) |
| # Anti-Scalp Wheels Under Deck | 6 (4 Front, 2 Rear) |
| Hour Meter / Tachometer | Optional |
| Oil Pressure Shut Off | Yes |
| Fuel Tank Size | 3 Gal. |
| Blade Spindles | 25mm Shaft (.984″) |
| Bearing # | 6205-2 RST |
| Drive Method | 1 B Section “V” Belt |
| Warranty | 1 Year Residential |
| Warranty – Engine | 1 Year Commercial/2 Year Residential |
| (*FOB Mendota, IL) | |||
| *Prices do not include shipping costs and may vary in different locations. | |||
| *Reserves the right to change specifications or discontinue products without notice |
In Package
- H60B Homeowner Finish Cut Mower (60″ cutting width)
- Briggs & Stratton 19 HP Professional Engine
- Three 20″ Mower Blades
- Pneumatic Front and Rear Tires
- 4-Point Height Adjustment System
