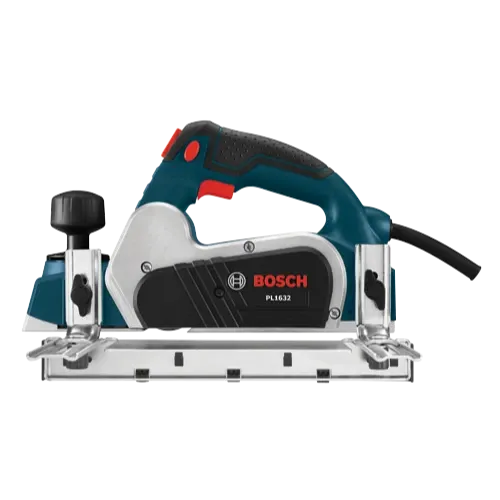

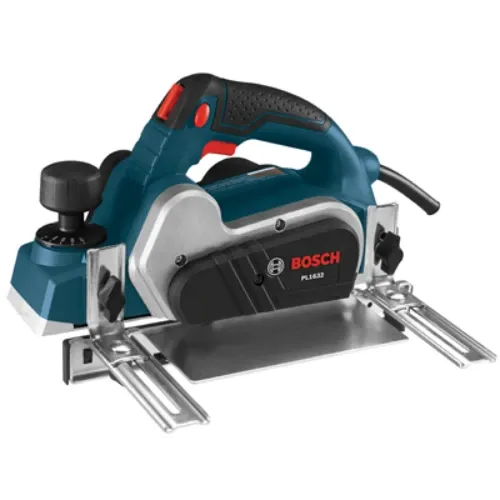

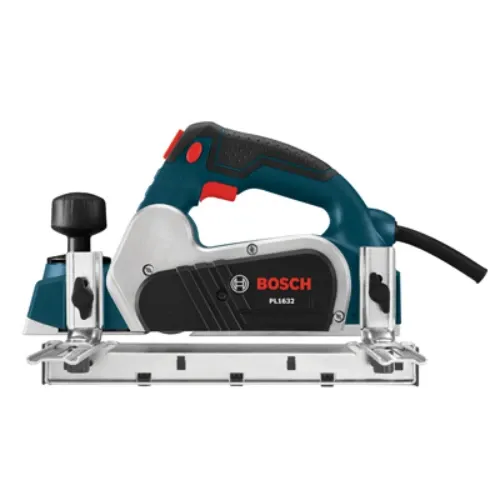

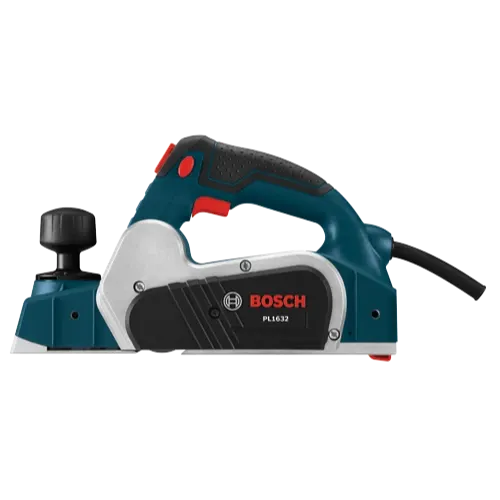

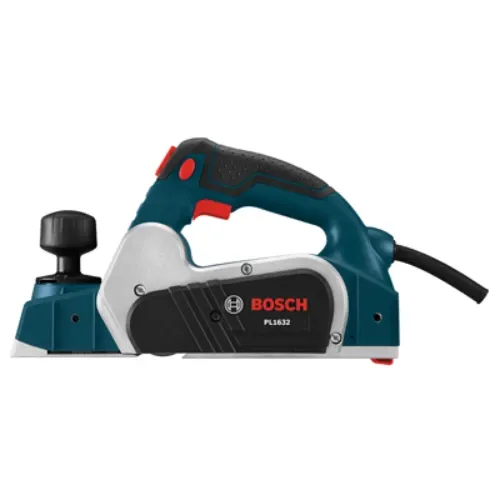

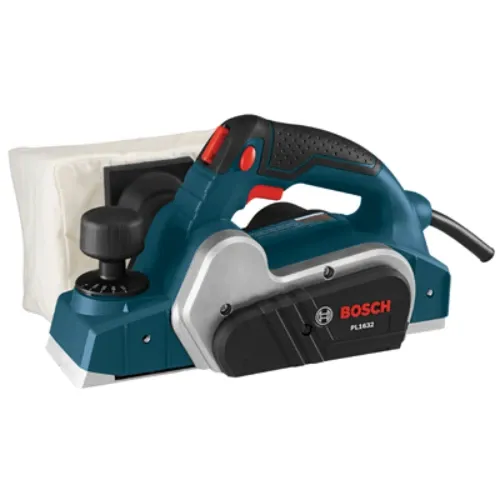

BOSCH PL1632 3-1/4 In. Planer

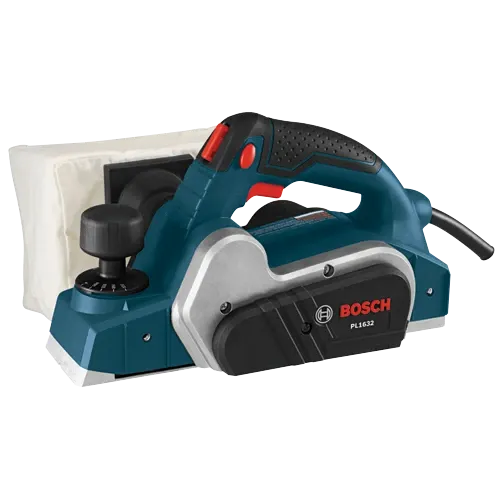

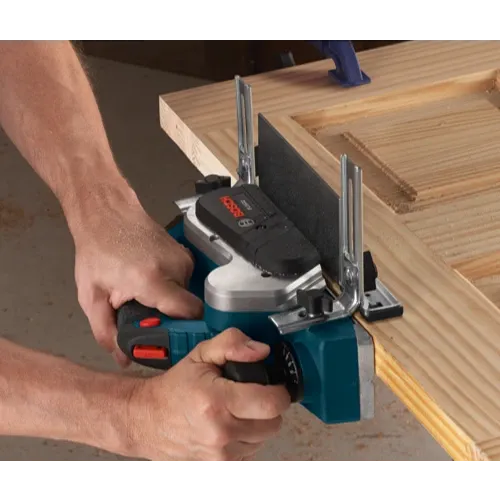

The Bosch PL1632 3-1/4 In. Planer delivers for pros who need to plane doors or other surfaces quickly and evenly. It delivers performance, convenience and security – with an outstanding planer-guidance system. It has a 6.5 Amp motor that produces 16,500 RPM for fast stock removal and smooth finishes. The tool's ambidextrous lock-off release button helps prevent avoid accidental starts, and it has a lock-on button for extended operation, a combination that is unique to Bosch planers. The aluminum front and rear shoes are precision-machined together for accuracy, and the tool has a machined groove for chamfering. Its counterbalanced blade design puts the blade at an ideal cutting angle and eliminates uneven planing caused by misaligned blades. It comes equipped with a reversible Bosch Woodrazor micrograin carbide blade. The tool also provides a spring-loaded stand that elevates the planer to protect the blade. The dual-mount guide fence can be mounted on either side of tool, with a plastic overshoe that offers protection for the workpiece surface. The dust port accommodates a large shavings bag. This planer is built with a poly micro-V drive belt for enhanced belt durability and a ball-joint cord swivel for enhanced ease of positioning the tool and cord.
INCLUDES
| Quantity | Include |
|---|---|
| 1 | PL1632 3-1/4 In. Planer |
| 1 | PA1202 Reversible Woodrazor Blade |
| 1 | Dual-Mount Guide Fence |
| 1 | No-Mar Plastic Overshoe |

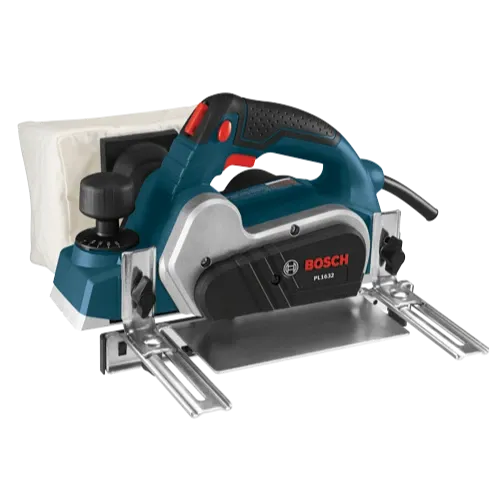

| 1 | Shavings Bag |
| 1 | Blade Wrench |

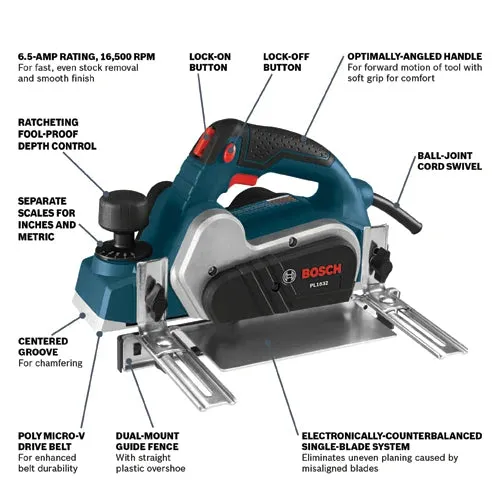

BENEFITS
for fast stock removal and smooth finish

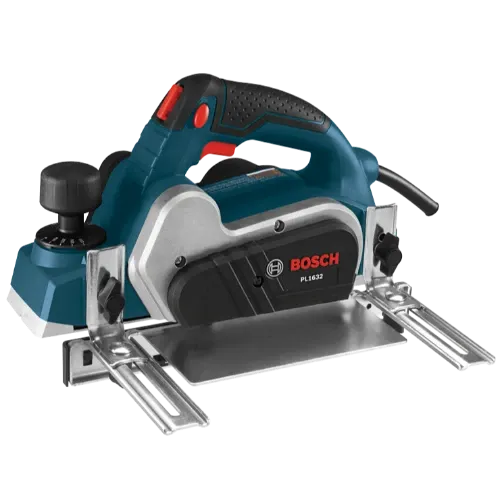

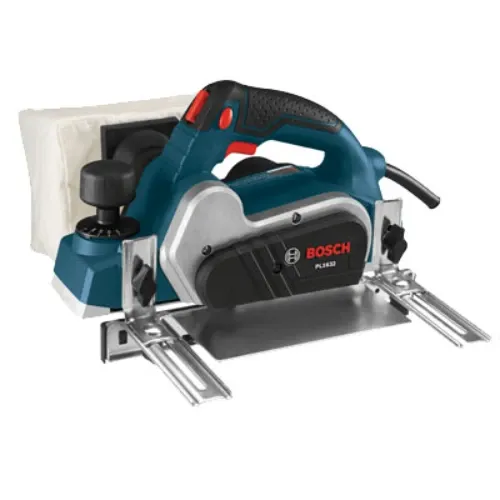

mounts to either side for consistent planing; includes protective shield and no-mar plastic overshoe
helps prevent accidental starts; includes a lock-on button for extended operation

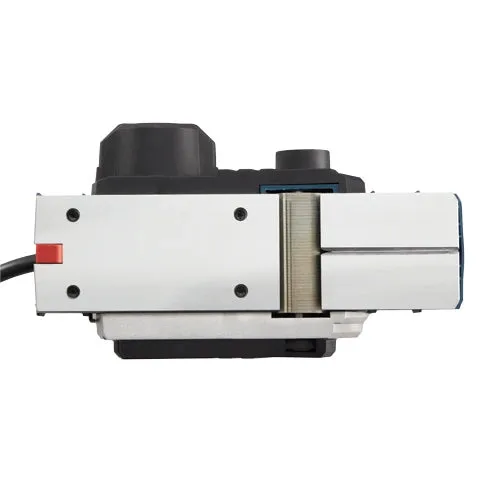

precision-machined together after assembly to ensure accuracy
for foolproof depth-increment setting from 0 to 1/16 In. within one revolution, eliminating the need to re-zero the depth
automatically positions blade at ideal cutting angle; reduces drag, enabling faster operation and smooth cutting
lasts up to 30% longer than standard carbide blades

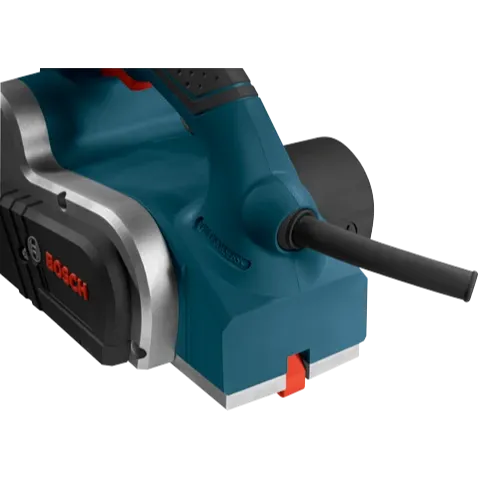

for enhanced ease of positioning the tool and cord

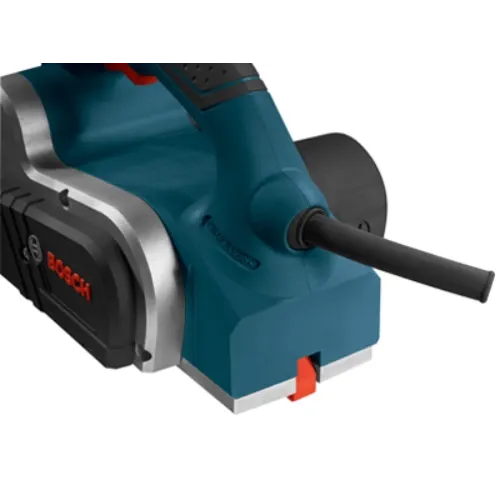

protects blade and tool resting spot

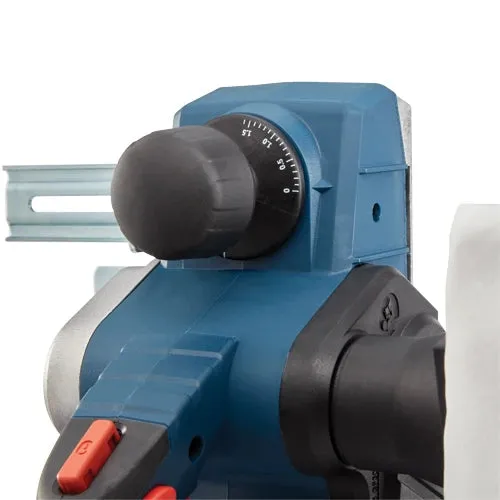

provides easy setting of planing depth
for chamfering
provides enhanced belt durability
TECHNICAL DATA
| Amperage | 6.5 |
| Case Type | No Case Included |
| Height in | 6.5" |
| Length in | 11.4" |
| No Load RPM | 16,500 |
| Planing Depth | 0" - .0625" |
| Planing Width | 0" - 3.25" |
| Rabbet Depth | 5/16" |
| Rabbet Width | 3-1/4" |
| Rating | 120V AC |
| Variable Speed | No |
| Voltage | 120V |
| Weight | 6.7lb |
| Width in | 6.0" |
| Works With |
Anti-Static Vacuum Hoses VH1635A (by means of anti-static adapter included with that hose), VAC008, and most other 35 mm anti-static hoses Other Vacuum Hoses VH1035 and VH1635 (by means of VX120 adapter included with those hoses), VAC005 and VAC006 hoses, and most other 35 mm hoses Adapter for 1-1/4 in. and 1-1/2 in. Vacuum Hoses VAC002 or VAC024 Adapter for 2-1/2 in. Vacuum Hoses VAC020 3-Degree Fence Overshoe PA1009 |
| Includes | (1) PL1632 3-1/4 In. Planer, (1) PA1202 Reversible Woodrazor Blade, (1) Dual-Mount Guide Fence, (1) No-Mar Plastic Overshoe, (1) Shavings Bag, (1) Blade Wrench |
