Name: Brake Shoe Kit ~ 4709 / ES ~ 16.5 in x 7.00 in. | Haldex 4709E / HV884709ES2G | FleetRun FR-BRKE291
SKU: 685508

Part Number

FleetRun: FR-BRKE291

Cross Reference Part Number

Haldex: 4709E / HV774709ES2J / HV884709ES2G / TDA XSMA2124709E2 / TDA XSMA20014709E2 / TDA XSEG24709E2 / TDA XK20014709E2 / ABP MK4709E2 23PREM / TDAXKW3124709E2 / TDAXK3124709E2 / TDAXK23014709E2 / RC BKE4709E2HV23 / RC BKE4709E2HV20 / 8235-MKT4709ES2N / RK4709E2LH23M / RK4709E2LH20M / XSMG2L4709E2RRMAN / RK4709E2STD23M / RK4709E2STD20M / RK4709E2PR23M / KT4709E2BA230 / MK4709E2-20PREM / NBRM180-4709E / NSNB2004709EK1T / OTR4709E2BLU / K4709E2LH23 / TDAKSMA3124709E2
Meritor: KSMA312 4709E2 / KSF5234709E1
Automann: 148.4709E.23 / 148.4709ES1.23
Freightliner / Alliance: TDA XK2124709E2
International / Navistar: FLTEN4709E2K
Eaton: RK8354709E2
Misc. Industry Part Number: 1000BKE4709E2HV23 / 1000-BKE4709E2HV23 / 4709E / 8235XK3124709E2 / 8235XKEG24709E2 / FLOE4709 / 4709E.23 / S 312-4709E2 / ABP MK4709E2 20ECON / WK4709ES2-23KW

Specifications

NO CORE NEEDED
4709 Style
Fits: Eaton ES2 Brake Systems
These are NEW BRAKE SHOES / NOT REMANUFACTURED
NS301 LINING – COMPARABLE TO 23K & 312 LINING
Length / Brake Drum Diameter: 16.50 in. / 41.90 cm
Width: 7.00 in. / 17.80 cm
Axle Weight Rating: 23,000 lbs.

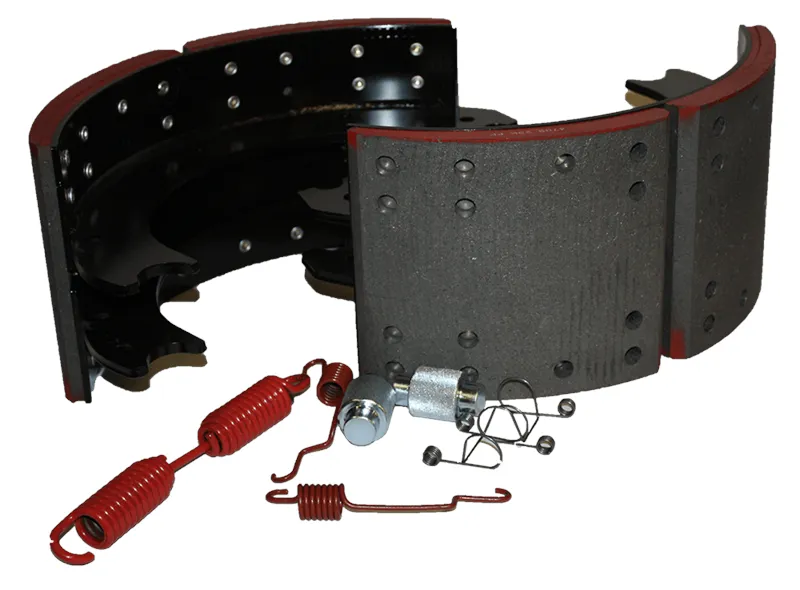

What's Included

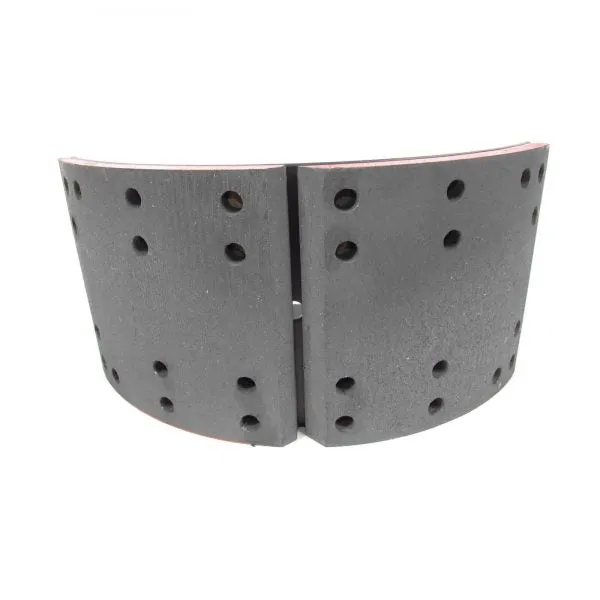

2 ~ Shoes With Lining
1 ~ Hardware Kit: 1 Main Spring, 2 Side Springs, 2 Side Spring Pins, 2 S-Cam / Brake Camshaft Rollers, 2 S-Cam / Brake Camshaft Roller Springs, 2 Shoe Mount Bushings, 2 Shoe Mount Rollers

Not What Your Looking For? Check Out These Brake Shoe Kits

Overview

Brake Shoe Kits are crucial to the drum / shoe style brake system and are universal across all applications and are used in various brake systems on tractors / trucks, trailers and dollies. Our brake shoe kits are made with quality in mind, meeting or exceeding OEM standards.

The thickness of the brake lining and pads of steering axle brake shoes on a truck, truck-tractor or bus “shall not be less than 0.1875 in. or 4.8 mm at the shoe center for a shoe with a continuous strip of lining. The thickness of the brake lining and pads of non-steering axle brake shoes on an air-braked commercial motor vehicle should not be thinner than 0.25 in. or 6.4 mm (this measurement is taken at the center of the brake shoe). If disc brakes are used, the minimum thickness is 0.125 in. or 3.2 mm.
